Placa Mae Asus B760M-Ayw Wifi Ii 1700 Ddr5 M.2 Nvme Hdmi

Descrição

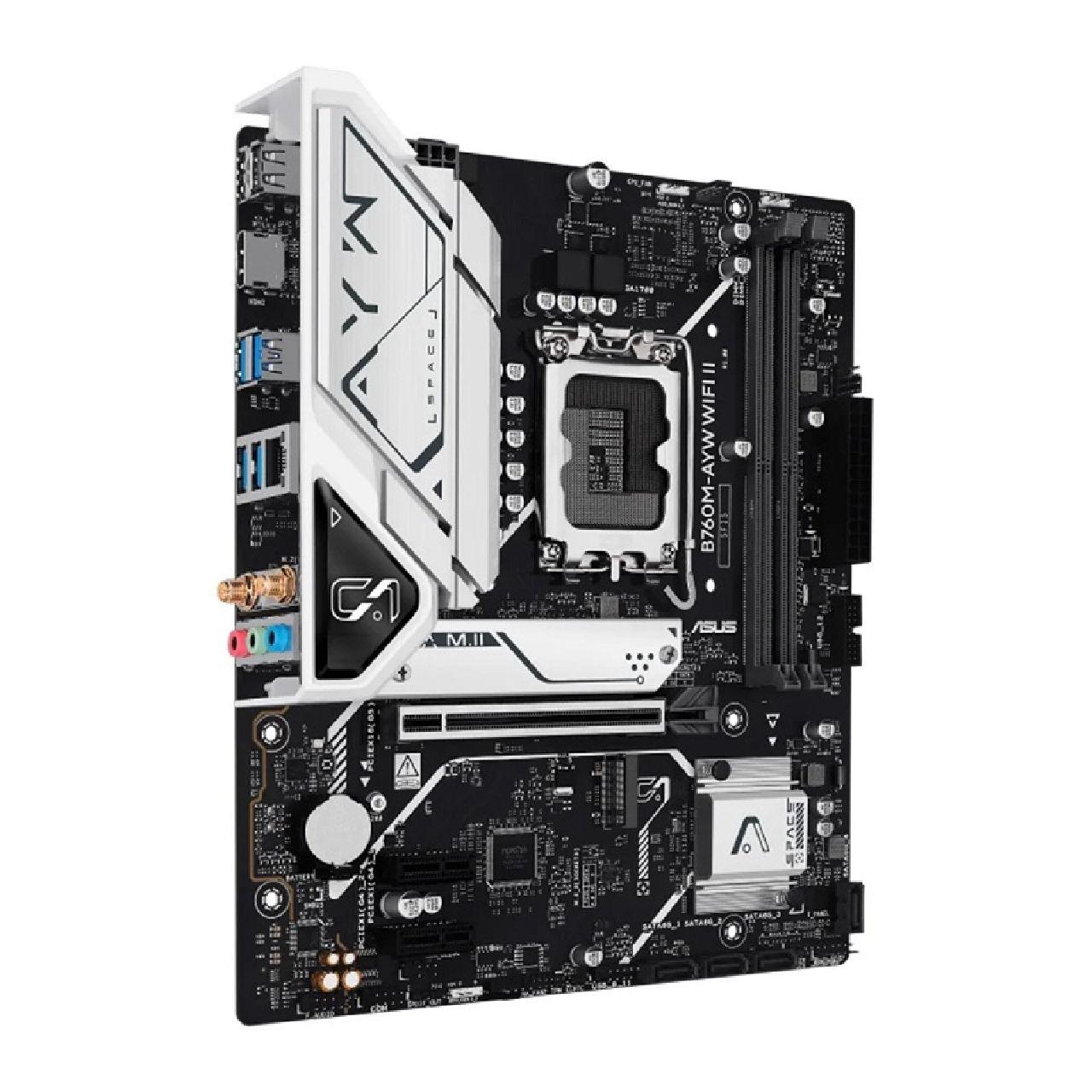

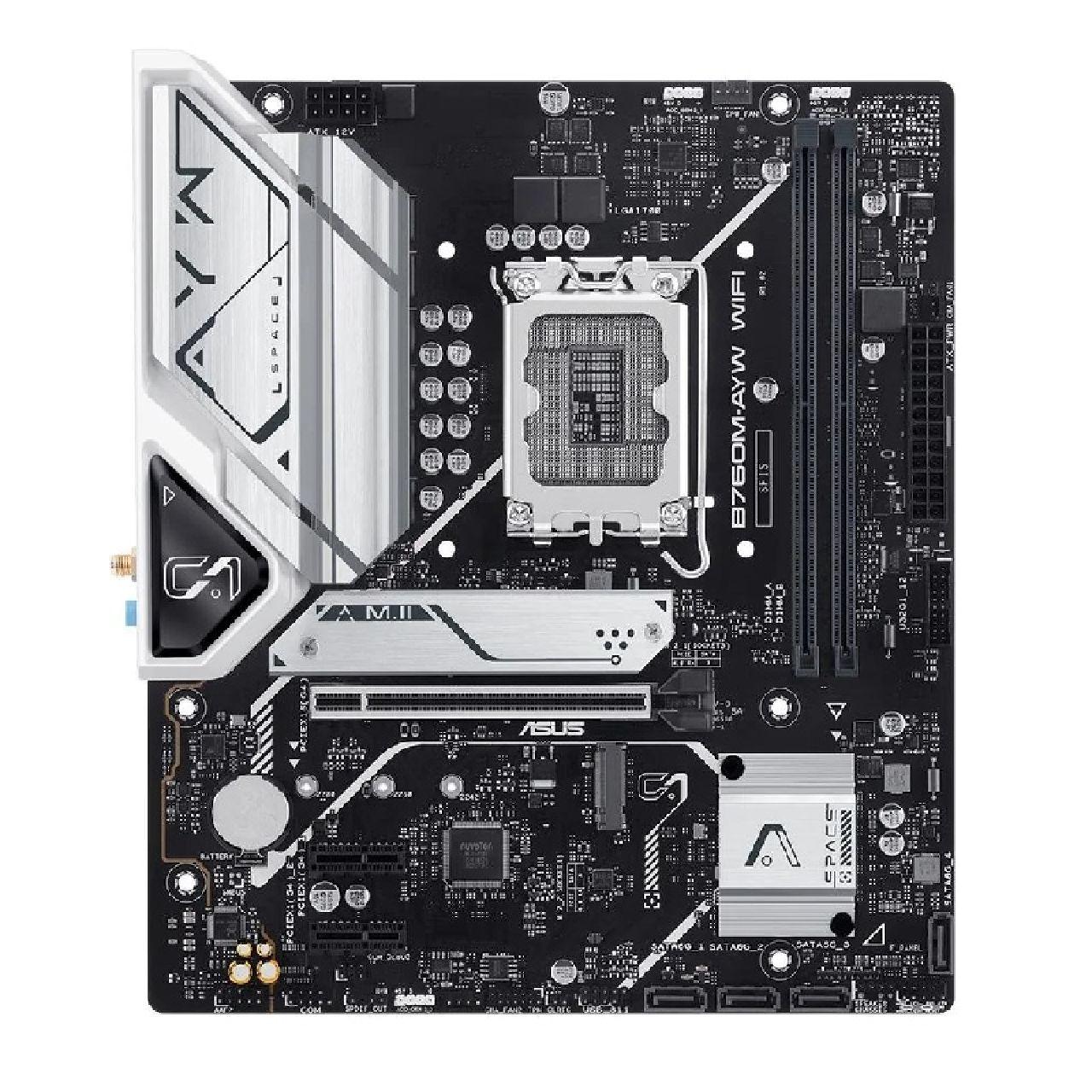

Placa-Mãe ASUS B760M-AYW WIFI D4 II

Características:
– Marca: ASUS
– Modelo: B760M-AYW WIFI D4 II

Especificações:

CPU
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

Chipset
Intel® B760 Chipset

Memória
2 x DIMM, Max. 64GB, DDR4

5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)
/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

Dual channel memory architecture

Supports Intel® Extreme Memory Profile (XMP) memory module

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory
configuration, for more information please refer to CPU/Memory Support list under the Support tab of product
information site asus
Adjustments will be made based on the specifications of mass-produced memory products available on the market.


Gráficos
1 x HDMITM port**

* Graphics specifications may vary between CPU types. Please refer to intel for any updates.
** Supports 4K@60Hz as specified in HDMI 2.1.

Slots de Expansão
Intel® Core™ Processors (14th & 13th & 12th Gen)*
1 x PCIe 5.0 x16 slot

Intel® B760 Chipset
2 x PCIe 4.0 x1 slots

– To ensure compatibility of the device installed, please refer to asus for the list of supported peripherals.

Armazenamento
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports

* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Rede
1 x Realtek 2.5Gb Ethernet

ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 6 (802.11 ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.3*

*The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.

USB
Rear USB (Total 6 ports)
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 4 ports)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports

Áudio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback

Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Portas I/O no painel Traseiro
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMITM port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks

Painel Interno
Fan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers

Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector

Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports

Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Clear CMOS header
1 x COM port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin Front Panel System header

Recursos Especiais

ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage protection
– SafeSlot
– Stainless-steel back I/O

ASUS Q-Design
– Q-DIMM
– Q-LED Core
– Q-Slot

ASUS EZ DIY
– ProCool

ASUS Thermal Solution
– VRM heatsink design

Aura Sync
– Addressable RGB Gen 2 headers

Recursos de Software
ASUS Exclusive Software

Armoury Crate
– Aura Sync
– Fan Xpert 2+
– Two-Way AI Noise Cancellation

ASUS DriverHub
-ASUS CPU-Z

AI Suite 3
– DIGI+ VRM
– PC Cleaner

Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode

* For more software features, please visit the asus support site or refer to asus for additional information.


BIOS
128 Mb  Flash ROM, UEFI AMI BIOS

Gerenciamento
WOL by PME, PXE

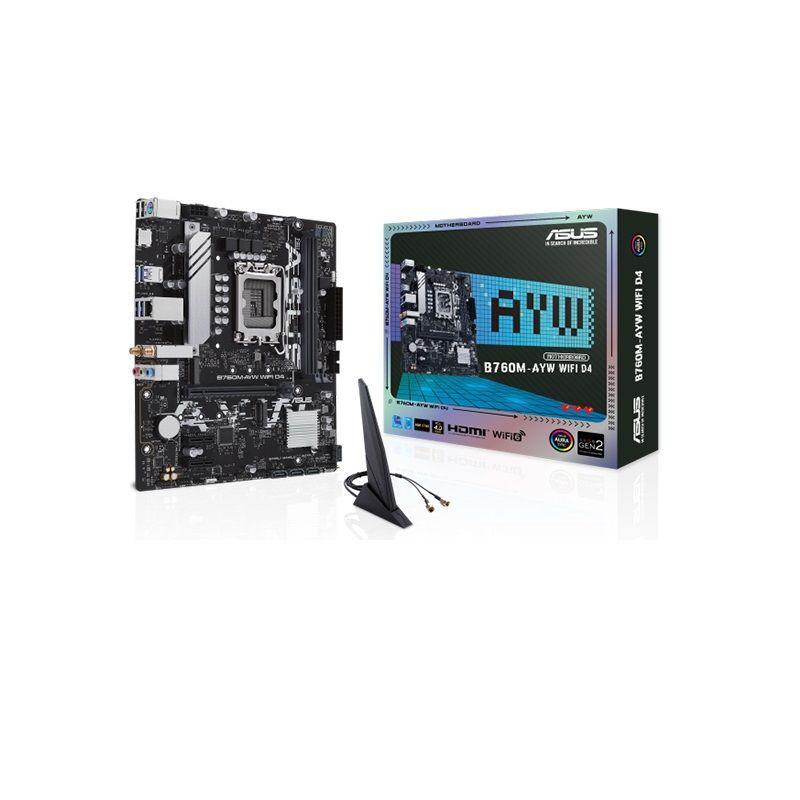

Conteúdo Da Embalagem:
Cables
2 x SATA 6Gb/s cables

Miscellaneous
1 x ASUS Wi-Fi moving antenna
1 x I/O Shield
1 x Screw package for M.2 SSD

Documentation
1 x Quick start guide

Garantia:
1 ano de garantia (3 meses de garantia legal + 9 meses de garantia contratual junto ao fabricante)

Peso: 1178 gramas (bruto com embalagem)

Código Anatel: 52372208766
