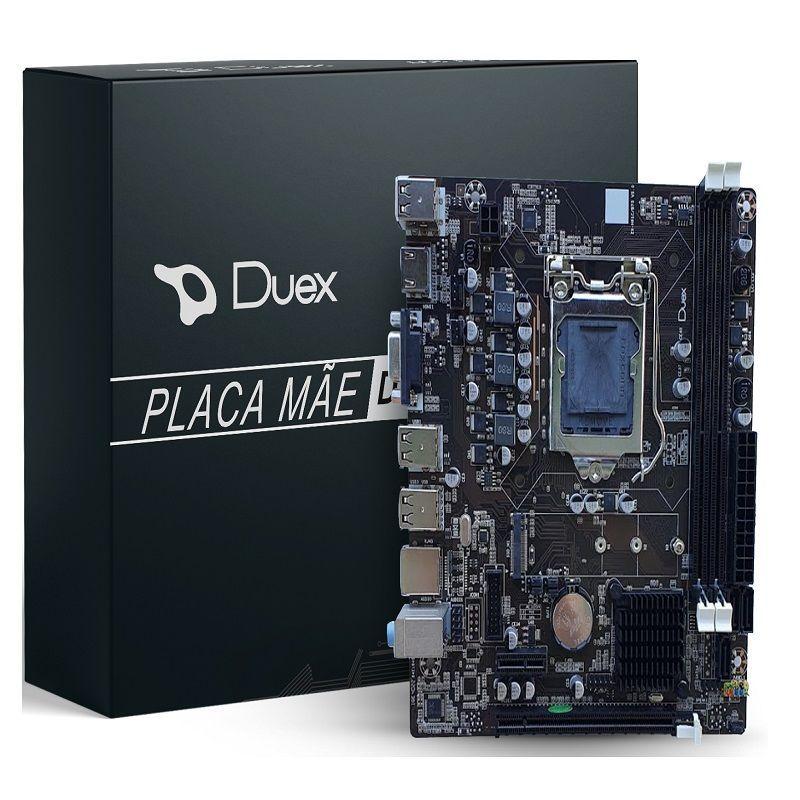

Placa Mae Duex Dx H61Z M2 Lga1155 (Intel) Ddr3
| Peso | 0,1 kg |
|---|---|
| Dimensões | 10 × 20 × 30 cm |
| Marca | DUEX |
Descrição
Processor Supports Intel® Socket 1155 Core i7/ i5/ i3 processors
Chipset Intel® H61
Memory Support Support Dual channel DDR3 1333/1066 SDRAM (8GB Max)
2 x DDR3 DIMMs (240 pin/ 1.5V)
LAN Spport Realtek® 10/100 Mbps
Audio Chip integrated by Realtek® ALC662
Slot 1 x PCI Express x16 Slot
1 x PCI Express x1 Slot
Storage 4 x SATA port
Internal I/O Ports:
1 x 24-pin ATX Power Connetor
1 x 4-pin ATX 12V Power Connetor
2 x USB connector support additional 4 USB ports
1 x LPC_DEBUG connector
1 x Front panel audio connector
1 x System Panel connector
1x M.2
Back I/O Ports:
1 x USB keyboard
1 x USB mouse
1 x VGA
1 x HDMI
4 x USB 2.0 (2 x USB 2.0,2
1 x LAN(RJ45) Port
3 x Audio jack
BIOS EFI BIOS
Form Factor Micro ATX – 190*170 mm
Accessories:
1 x Driver CD
1 x User Manual
1 x I/O Backboard
1 x SATA cable
